Tab CPR2

$52.00$57.20

Description

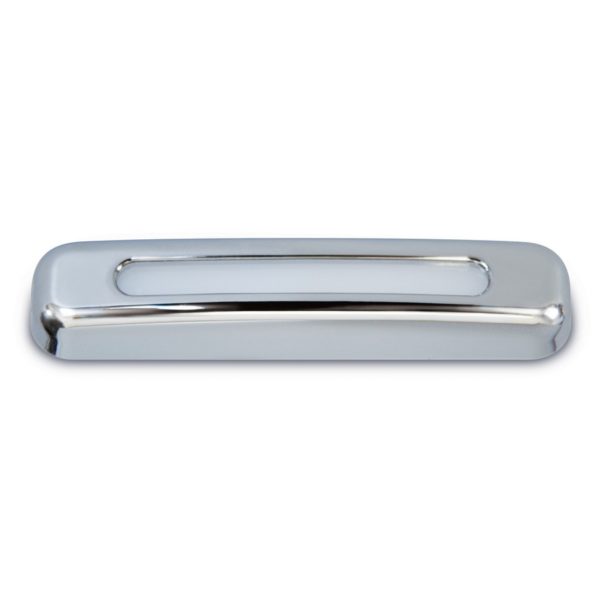

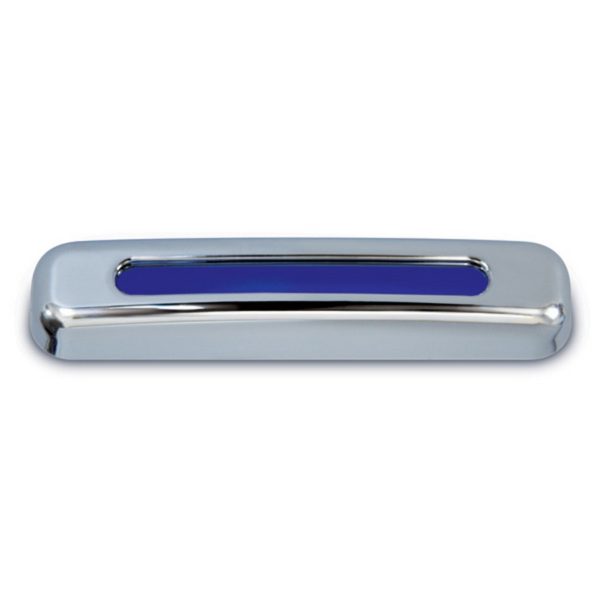

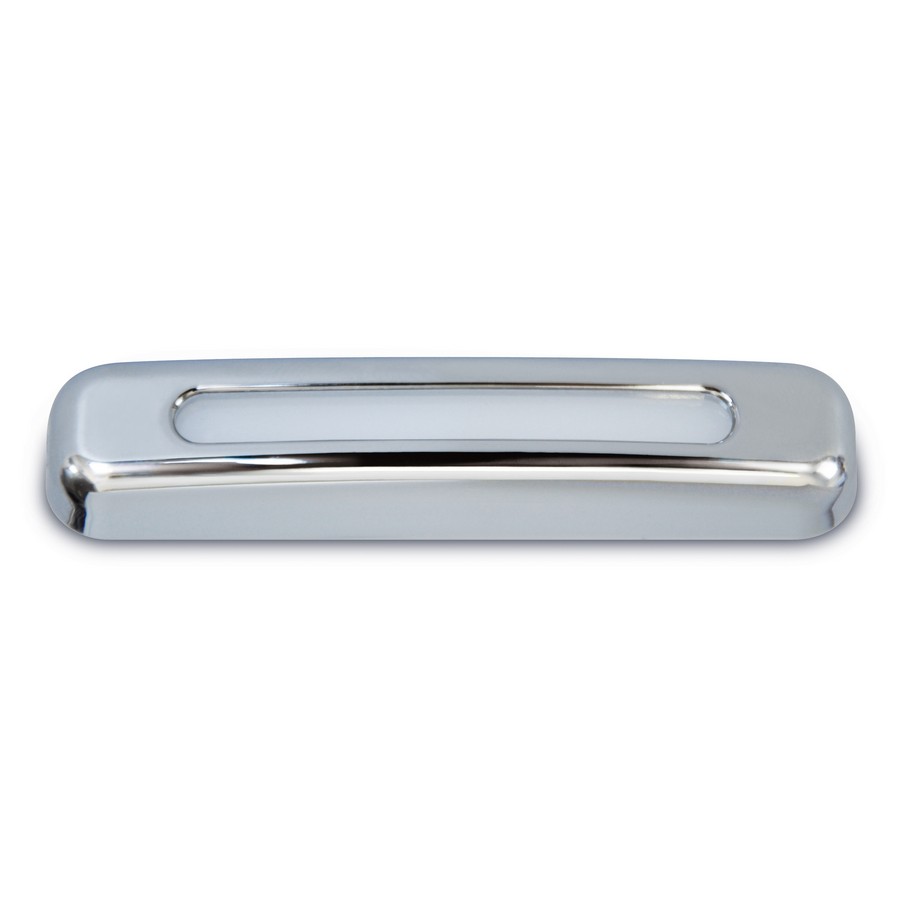

The Tab is an IP65 LED courtesy light. It has a 68mm x14mm rectangular cover composed of AISI stainless steel and UV stabilized techno-polymer. This unit is available in daylight, blue, and red LED bulb colors.

Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Light Color

Daylight, Red, Blue

Trime

Chrome

Specifications

Specifications

Power type Constant Voltage
Light source 4 x LED
Supply 10 ÷ 30 V
Power consumption 1 W @ 24 V
Current consumption 0.04 A
Average lifetime 50,000 h
IP security degree 65

Dimensions

Frame RECT. 2 23/32″ x 19/32″
Recess 21/64″ (Thickness)

Design

Frame material PLASTIC
Finish MIRROR POLISHED
Light colors DAYLIGHT / RED / BLU
Mounting SCREWS

Certifications

Dimensions in mm (inches)

LED Protection: Spike protected ± 500V Polarity sensitive: YES
