Tab SSR2
$68.00
Description

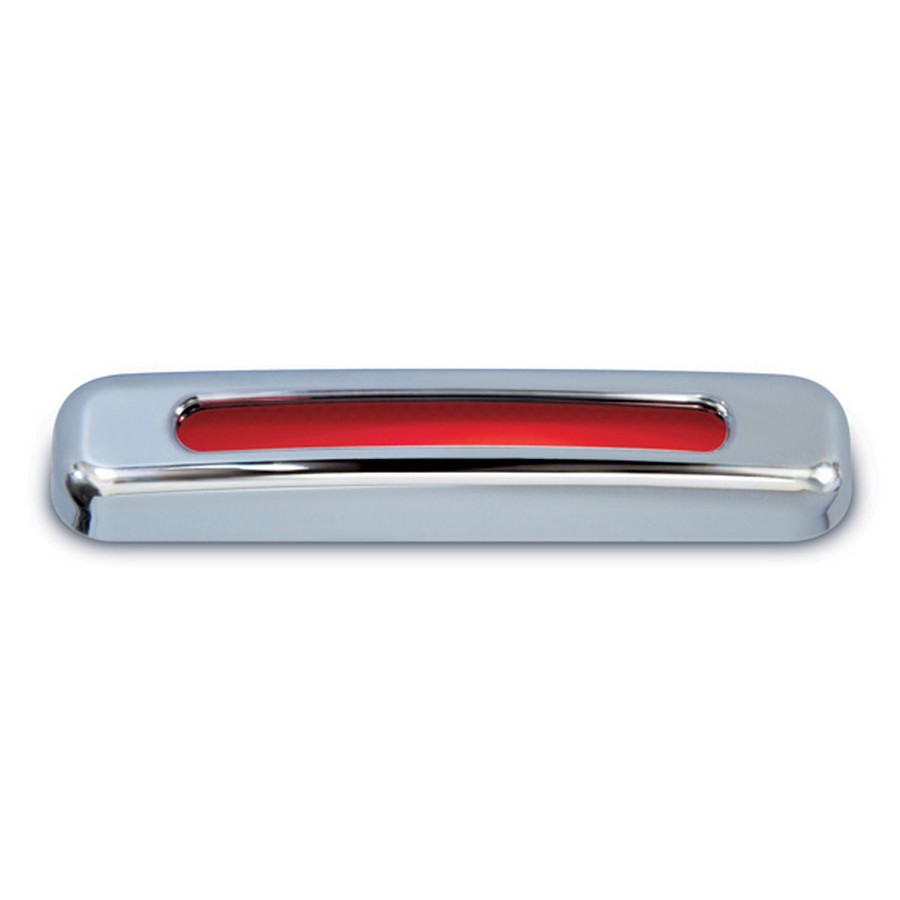

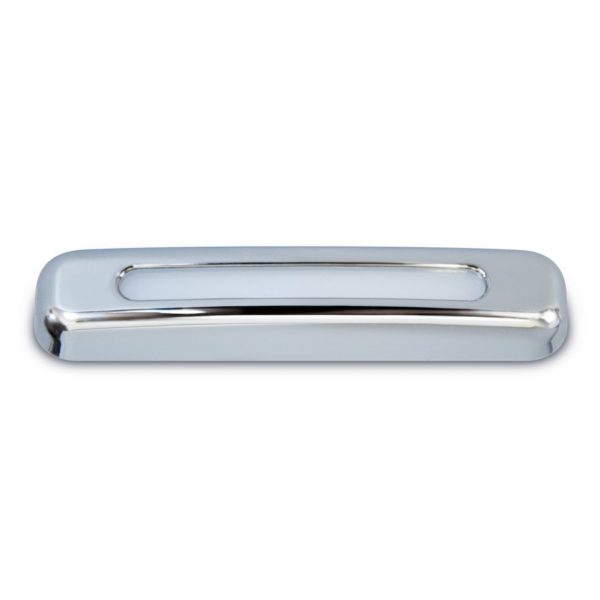

The Tab is an IP65 LED courtesy light. It has a 68mm x14mm rectangular cover composed of AISI stainless steel and UV stabilized techno-polymer. This unit is available in daylight, blue, and red LED bulb colors.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Light Color | Daylight, Red |
| Trim | Stainless Steel |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 4 x LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 1 W @ 24 V |
| Current consumption | 0.04 A |
| Average lifetime | 50,000 h |
| IP security degree | 65 |
Dimensions
| Frame | RECT. 2 21/32″ x 17/32″ |
| Recess | 5/16″ (Thickness) |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED |
| Light colors | DAYLIGHT / RED / BLU |
| Mounting | SCREWS |
Certifications
   |

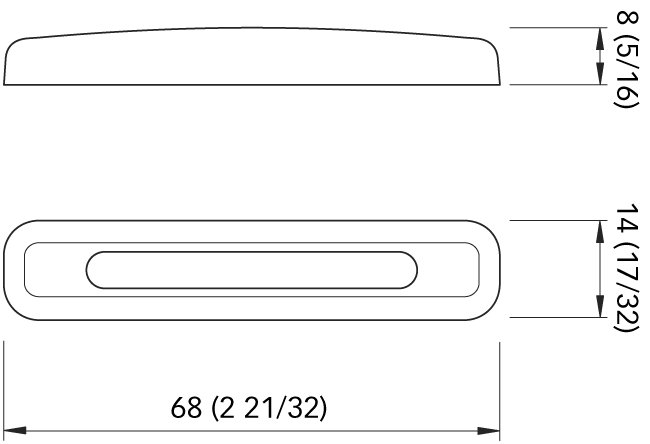

Dimensions in mm (inches)
LED Protection: Spike protected ± 500V Polarity sensitive: YES
