Description

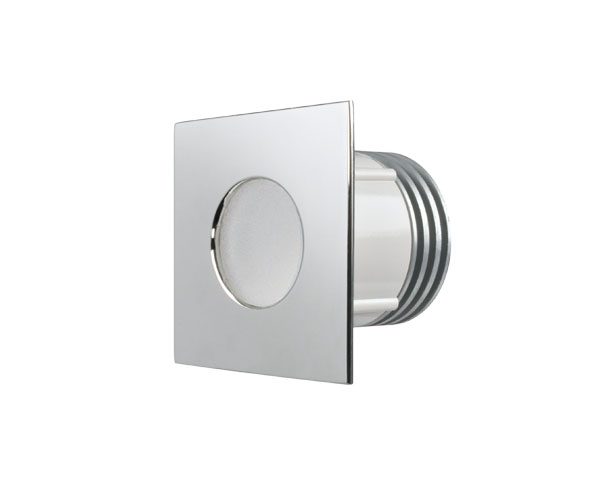

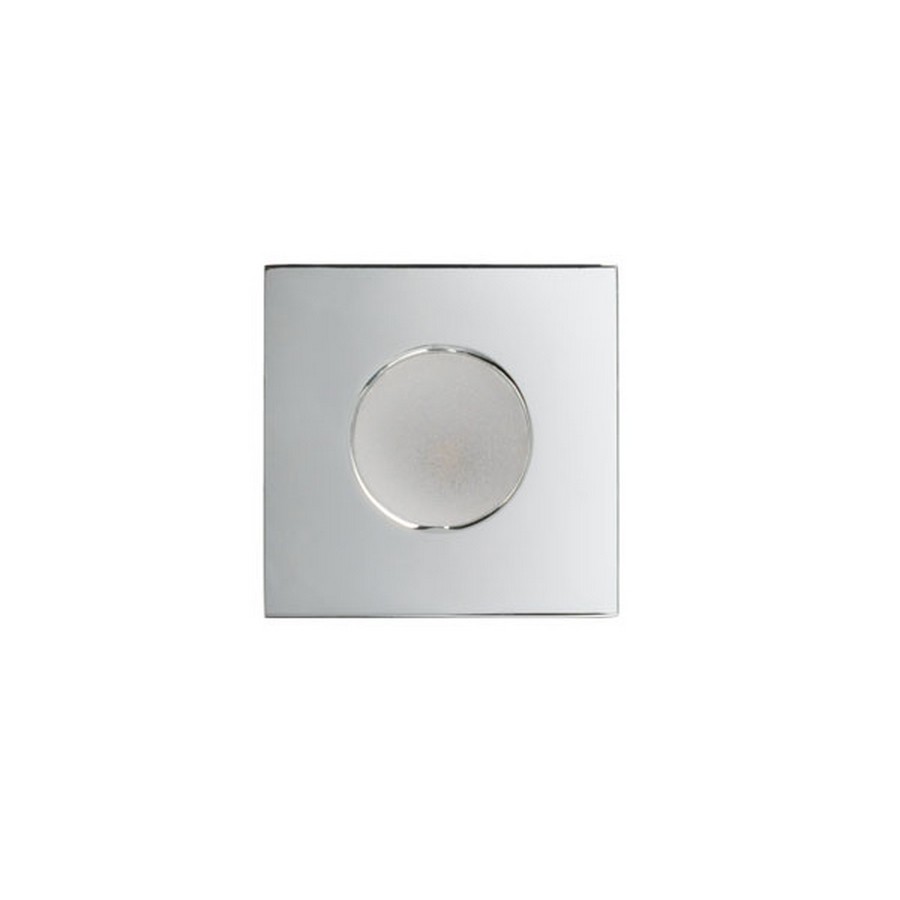

The Erica is an IP65 Power LED downlight. It has a 50mm x 50mm square trim composed of AISI 316 stainless steel and frosted lens. It is available in daylight and warm led bulb colors. It has a 1, 2 and 3 light option.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
1 x POWER LED |
| Supply |
10 ÷ 30 V |
| Power consumption |
2 W |
| Current consumption |
0.08 A @ 24V |
| Average lifetime |
50,000 h |
| Dimmable |
Yes |
| IP security degree |
65 |
Dimensions
| Frame |
SQ. 1 31/32″ |
| Recess |
1 3/8″ |
| Hole |
Ø 1 9/16″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
CHROMED / SATIN |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SPRINGS |
Photometric data
| DAYLIGHT |
3800-4200 °K |
| Angle |
40° |
| Light flow |
80 lm |
| Efficiency |
40 lm/W |
| Light Beam- distance 1 m |
Ø 0.7 m |
118.2 lux |
| Light Beam- distance 2 m |
Ø 1.4 m |
29.6 lux |
| Light Beam- distance 3 m |
Ø 2.1 m |
13.1 lux |
| WARM WHITE |
2800-3100 °K |
| Angle |
40° |
| Light flow |
70 lm |
| Efficiency |
35 lm/W |
| Light Beam- distance 1 m |
Ø 0.7 m |
103.7 lux |
| Light Beam- distance 2 m |
Ø 1.4 m |
25.9 lux |
| Light Beam – distance 3 m |
Ø 2.1 m |
11.5 lux |
Certifications
Dimensions in mm (inches)
LED Protection: Spike protected ± 500V Polarity sensitive: YES
