Barbie C
$245.47 – $276.85
Description

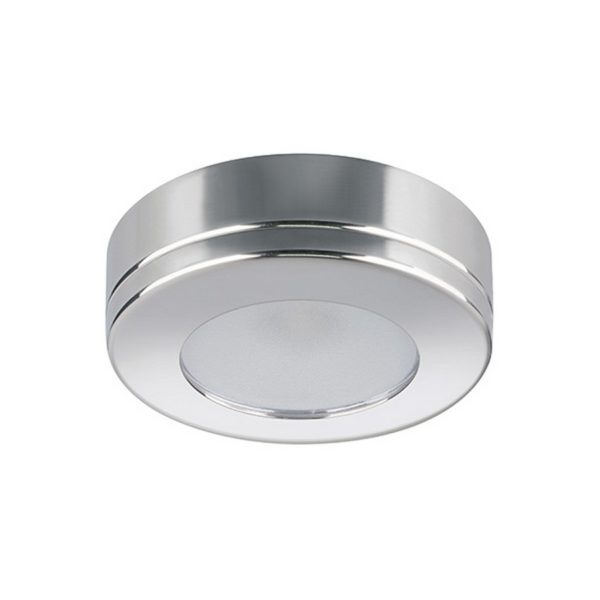

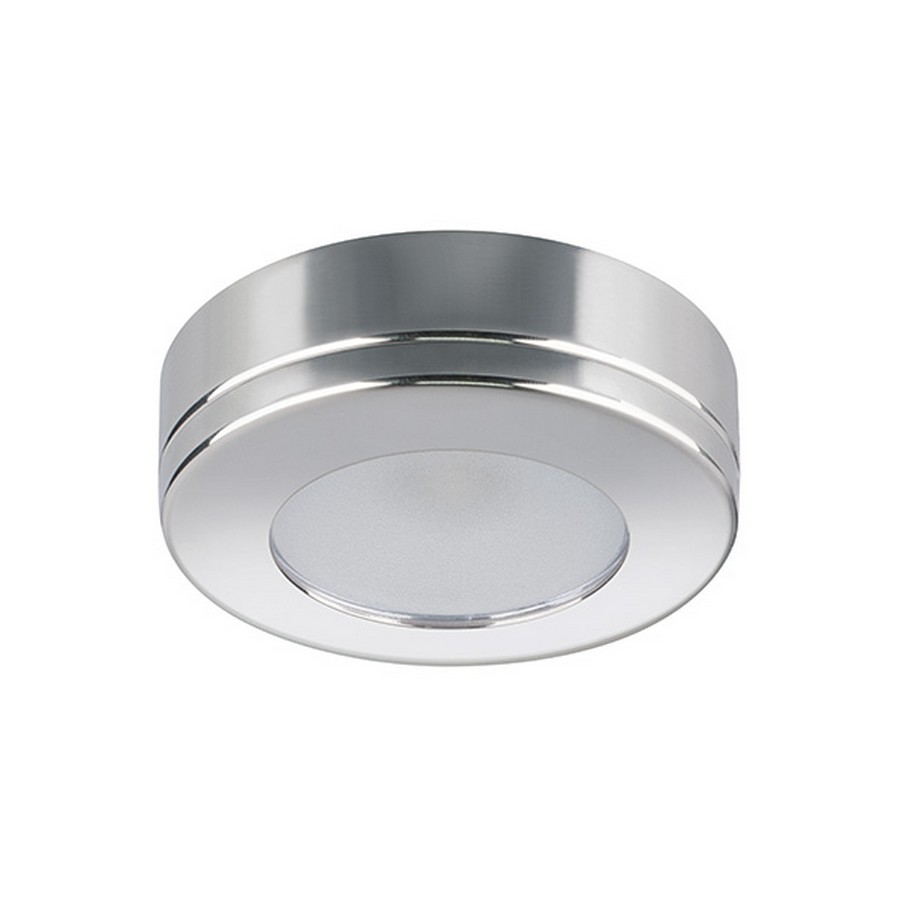

The Barbie C is an IP66 recessed LED surface mounted downlight. It has a 72mm round trim composed of plastic plated in chrome or white. It is available in a warm white led bulb color. It has a satin diffuser and can be installed on the wall or ceiling.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.5 × 0.5 × 0.5 in |
| Light Color | Warm, Daylight, Warm/Blue |
| Trim | Stainless Steel |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 2 W |
| Current consumption | 0.09 A @ 12V |
| Average lifetime | 50,000 h |
| Dimmable | Yes |
| IP security degree | 66 |
Dimensions
| Frame | Ø 2 27/32″ |
| Recess | 51/64″ (Thickness) |
Design
| Frame material | AISI 316 S.STEEL |
| Finish | MIRRORED POLISH |
| Light colors | WARM WHITE |
| Mounting | SCREWS |
Photometric data
| WARM WHITE | 3800-4200 °K | |
| Angle | 100° | |
| Light flow | 105 lm | |
| Efficiency | 58 lm/W | |
| Light Beam – distance 1 m | Ø 2.43 m | 40.8 lux |
| Light Beam – distance 2 m | Ø 4.85 m | 10.2 lux |
| Light Beam- distance 3 m | Ø 7.28 m | 4.5lux |
| DAYLIGHT | 3800-4200 °K | |
| Angle | 100° | |
| Light flow | 115 lm | |
| Light Beam – distance 1 m | Ø 2.43 m | 44.4lux |
| Light Beam – distance 2 m | Ø 4.85 m | 11.1 lux |
| Light Beam- distance 3 m | Ø 7.28 m | 4.9lux |
Certifications
   |
Dimensions in mm (inches)
DIMMERS
ZDIM100
ZDIM100
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
