TCD2062 THRUSTER CONTROL WITH TSC
$1,006.24
The TCD 2062 Thruster Control with TSC provides reliable, precise marine thruster management, enhancing vessel maneuverability and overall operational performance.
Description
The TCD series remote control systems have been designed to control the stern and bow thrusters. Manufactured by Quick®.

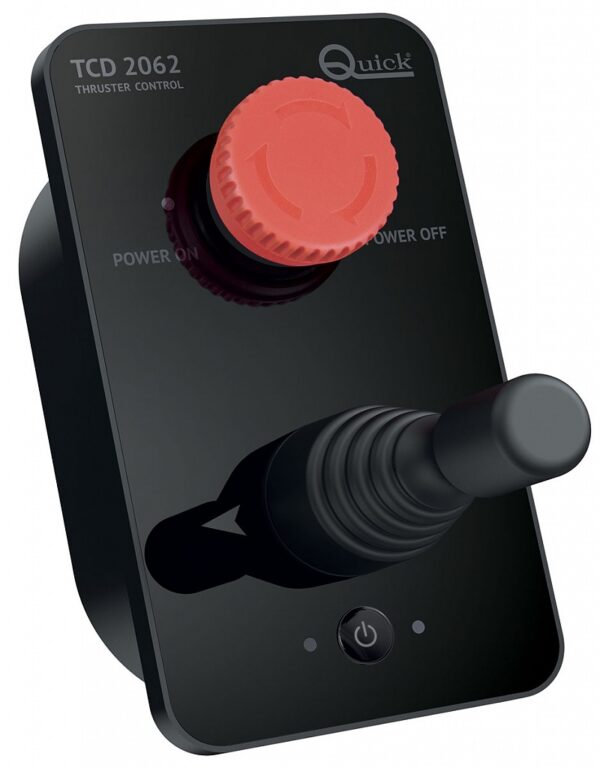

Joystick remote control TCD 2062 and integrated main switch command.
- Simple and intuitive user interface.
- Universal power supply (12/24 Vdc).
- Can work in a wide range of ambient temperatures.
- Possibility of connecting several TCD controls in parallel.
- Easy to install by means of 2-wire connector (optional extensions).
- Automatic priority system.
- Automatic disablement.
- Protection against reverse polarity, short circuit output, prolonged activity of motor and interruption of thruster controls wiring.
- Acoustic signals (that can be deactivated)
Technical Manuals
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
Specifications
|
Model
|
TCD 2062 |
| Current capacity of thruster commands | 4A |
| Supply voltage (1) | da 9 a 31 Vdc |
| Current absorption at rest (2) | 10 mA |
| Operating temperature | from -20 to +70 °C |
| Protection rating (3) | IP 65 |
| Dimensions including frame (W x H x D) | 3″ 5/64 x 5″ 5/32 x 4″ 11/32 |
| Weight | 0.59 lb |
