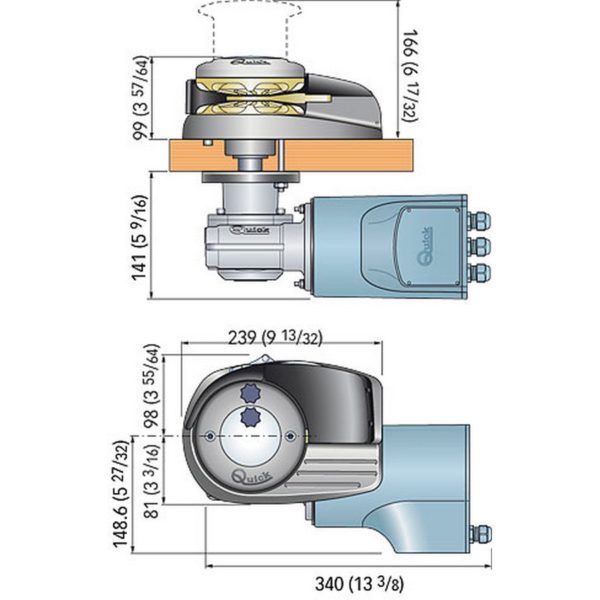

AL3 Vertical Windlass Aleph_1000 with drum
AL3 Vertical Windlass with Drum - Image 2
AL3 Vertical Windlass with Drum - Image 3
AL3 Vertical Windlass with Drum - Image 4
AL3 Vertical Windlass with Drum - Image 5
AL3 Vertical Windlass with Drum - Image 6
AL3 Vertical Windlass with Drum - Image 7

AL3 Vertical Windlass with Drum

$3,234.33 – $5,190.90

FOR BOATS FROM 7 TO 15 METERS (23 – 49 FT)
Aleph 700 W 7 – 10 m 23 – 33 ft
Aleph 1000 W 10 – 14 m 33 – 46 ft
Aleph 1500 W 12 – 15 m 39 – 49 ft

The indication may vary according to the boat type and the anchor-rode type

SKU: ALEPH D - Categories: , Tags: ,

Description

The AL3 is a vertical application windlass with Drum perfect for boats with limited deck space. This unit is composed of anodized aluminum in hard oxide which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. This package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

GYPSY 8 mm – 5/16″ 10 mm – 3/8″
CHAIN 8 mm 8 mm 5/16″ 5/16″ 10 mm 3/8″
DIN 766 ISO G4 BBB ISO G4
ROPE 1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) 5/8″ (15,8 mm)

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick®” system.

Supplied accessories standard

Solenoid Units
MODELS T6315-12 T6315-24
700 W 12 V 12 V
1000 W 12 V 24 V
1500 W 12 V 24 V

Additional information

Weight N/A
Dimensions 17 × 17 × 11 in
Drum

Gypsy Size

,

Series

Wattage

700W, 1000W, 1500W
Voltage

12V, 24V

Specifications

Standard version
 Aleph 700 / 700 D Aleph   1000 / 1000 D Aleph   1500 / 1500 D
Motor power 700 W 1000 W 1500 W
Motor supply voltage 12 V 24 V 12 V 24 V 12 V 24 V
Maximum pull 1874 lb 2205 lb 2426 lb
Maximum working load 551 lb 661 lb 816 lb 992 lb 1037 lb 1191 lb
Working load 176 lb 220 lb 265 lb 331 lb 353 lb 397 lb
Current absorption @ working load (1) 95 A 50 A 140 A 80 A 155 A 85 A
Maximum chain speed (2) 90 ft/min 87 ft/min 130 ft/min 135 ft/min 96 ft/min 98 ft/min
Maximum chain speed @ working load (2) 48 ft/min 49 ft/min 67 ft/min 71 ft/min 54 ft/min 63 ft/min
Weight – Aleph – [without drum] 37 lb 39 lb 50 lb
Weight – Aleph D – [with drum] 40 lb 42 lb 49 lb
