DK6 Y duke vertical windlass with drum
DK6 Y Vertical Windlass with Drum - Image 2
DK6 Y Vertical Windlass with Drum - Image 3

DK6 Y Vertical Windlass with Drum

$13,981.32 – $15,723.95

SKU: DUKE-D-LCP - Categories: , Tag:

Description

The Duke DK6 is a vertical application windlass with drum perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval, chain stopper, and various gypsy sizes for rope and chain retrieval. Additional features include an IP66 watertight motor, anodized aluminum gearbox, and inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Â

Duke 3000 W DC 18 – 26 m 60 – 85 ft
Duke 3500 W DC 22 – 29 m 75 – 95 ft
Duke 4000 W AC 18 – 29 m 60 – 95 ft
Duke 5500 W AC 22 – 32 m 75 – 105 ft
Duke Hydro 20 – 32 m 60 – 105 ft

The indication may vary according to the boat type and the anchor-rode type



GYPSY 12-13 mm 14 mm – 1/2″ 16 mm
CHAIN 12 mm 13 mm 7/16″ 14 mm 14 mm 1/2″” 16 mm 16 mm
ISO DIN 766 G4 DIN 766 ISO G4 DIN 766 ISO

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick®” system.

Additional information

Weight N/A

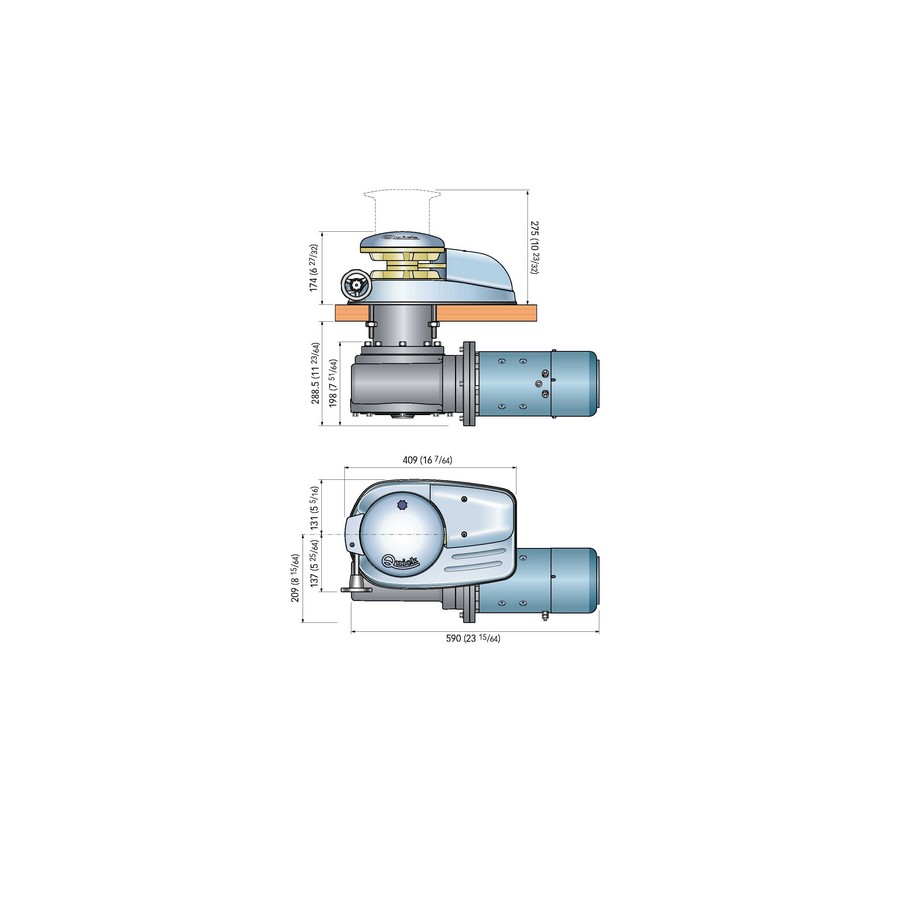

Dimensions 17 × 17 × 11 in
Drum

Gypsy Size

, ,

Series

Wattage

3000W, 3500W
Voltage

24V

Specifications

Standard version
 Duke 3000 / 3000 D Duke 3500 / 3500 D
Motor power 3000 W 3500 W
Motor supply voltage 24 V 24 V
Maximum pull 6614 lb 8818 lb
Maximum working load 2645 lb 3307 lb
Working load 1322 lb 1532 lb
Current absorption @ working load (1) 173 A 197 A
Maximum chain speed (2) 101.7 ft/min 90.6 ft/min
Maximum chain speed @ working load (2) 49.5 ft/min 48.2 ft/min
Weight – Duke – [without drum] 242,5 lb 247 lb
Weight – Duke D – [with drum] 247 lb 251.3 lb
