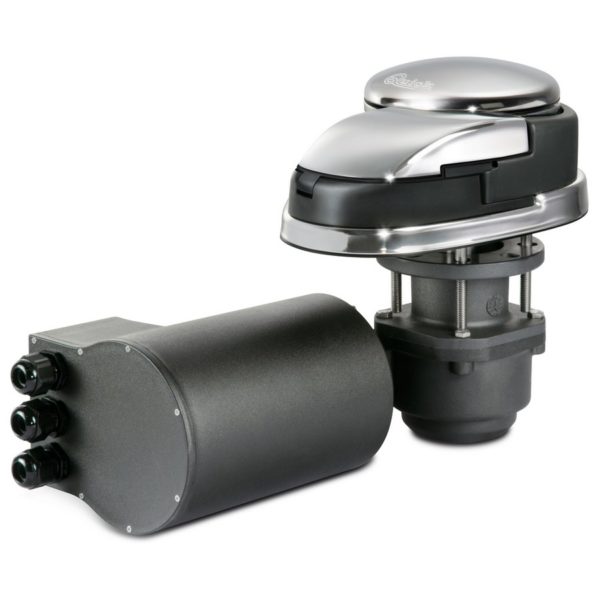

DP3 vertical windlass
DP3 Vertical Windlass - Image 2
DP3 Vertical Windlass - Image 3
DP3 Vertical Windlass - Image 4
DP3 Vertical Windlass - Image 5
DP3 Vertical Windlass - Image 6

DP3 Vertical Windlass

$2,450.25 – $3,436.40

SKU: DP3 - Categories: , Tag:

Description

The Prince DP3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.



For boats from 7 to 15 meters (23 – 49 ft)
DP3 700 W 7 – 10 m 23 – 33 ft
DP3 1000 W 10 – 13 m 33 – 43 ft
DP3 1500 W 12 – 15 m 39 – 49 ft



Gypsy
 8 mm – 5/16″ 10 mm – 3/8″
Chain 8 mm 8 mm 5/16″ 5/16″ 10 mm 10 mm 3/8″
DIN 766 ISO G4 BBB DIN 766 ISO G4
Rope 9/16″   – 5/8″ 5/8″

Additional information

Weight N/A
Dimensions 17 × 17 × 11 in
Drum

Gypsy Size

,

Series

Wattage

700W, 1000W, 1500W
Voltage

12V, 24V

Specifications

Standard version
 DP3 700 / 700 D DP3 1000 / 1000 D DP3 1500 / 1500 D
Motor power 700 W 1000 W 1500 W
Motor supply voltage 12 V 24 V 12 V 24 V 12 V 24 V
Maximum pull 1874 lb 2204 lb 2204 lb 2425.1 lb 2425.1 lb
Maximum working load 551 lb 661 lb 816 lb 992 lb 1036 lb 1190 lb
Working load 176 lb 220 lb 264 lb 331 lb 353 lb 397 lb
Current absorption @ working load (1) 95 A 50 A 140 A 80 A 155 A 85 A
Maximum chain speed (2) 90 ft/min 86 ft/min 129 ft/min 134 ft/min 95.8 ft/min 97.4 ft/min
Maximum chain speed @ working load (2) 47 ft/min 48 ft/min 67 ft/min 70.2 ft/min 53.4 ft/min 62.3 ft/min
Weight – DP3 – [without drum] 37 lb 40 lb 40 lb 45 lb 45 lb
Weight – DP3 D – [with drum] 39 lb 42 lb 42 lb 47.1 lb 47.1 lb
