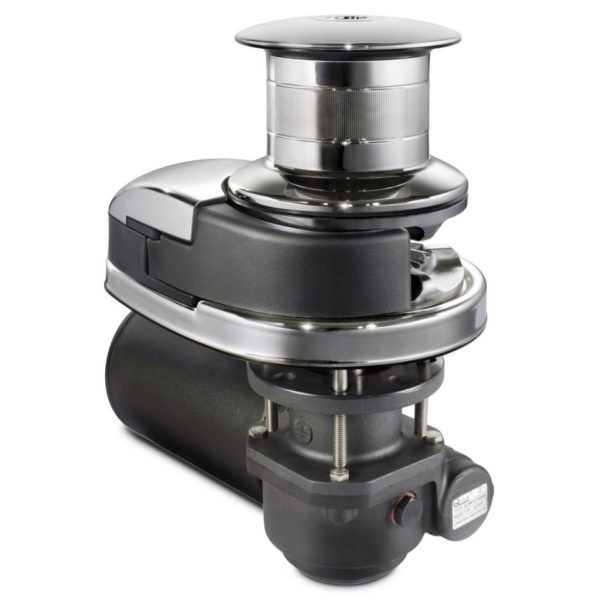

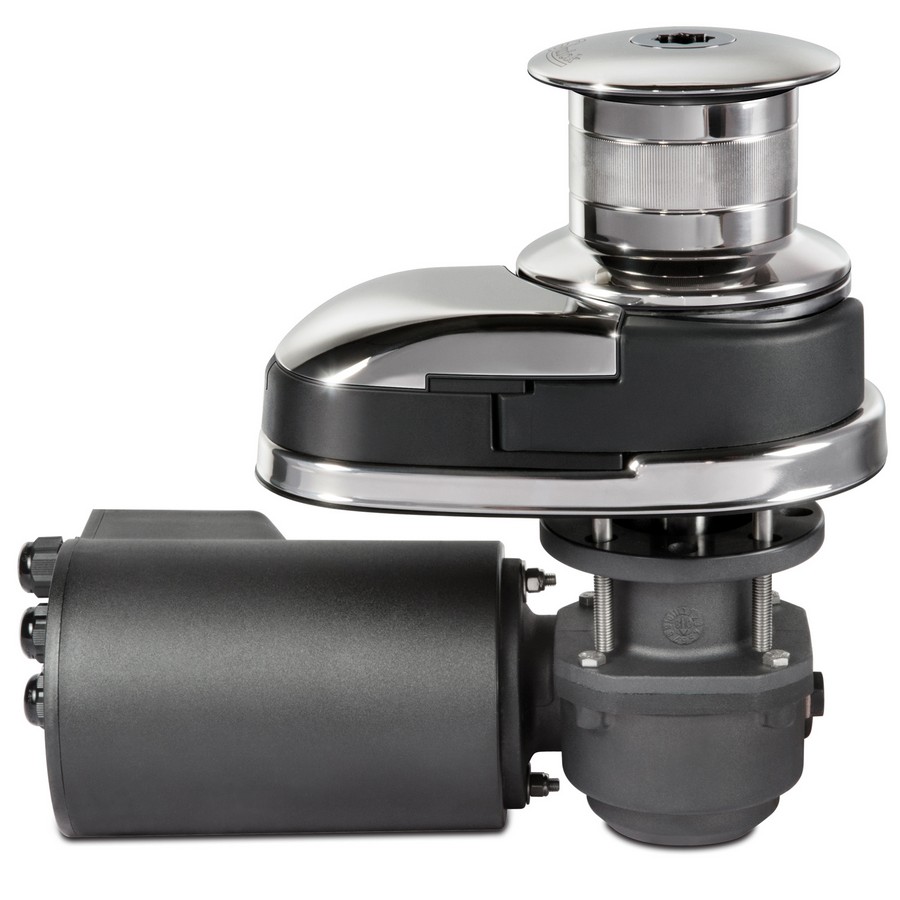

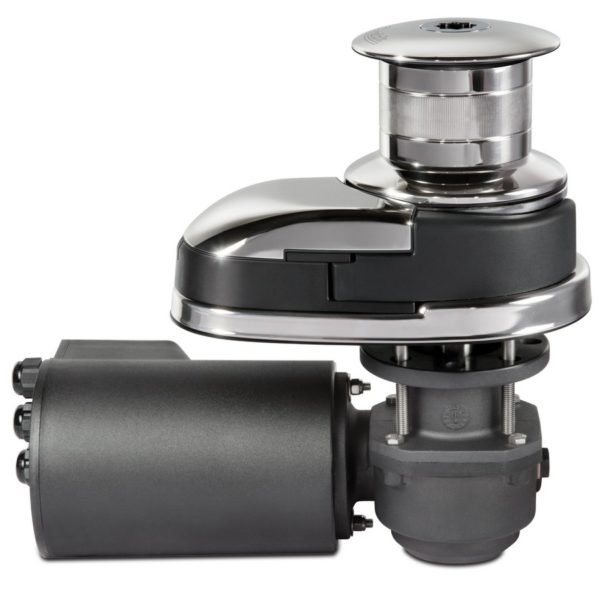

DP3 Vertical Windlass with Drum
$2,668.05 – $3,835.70
Description
The Prince DP3 is a vertical application windlass with a drum perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| For boats from 7 to 15 meters (23 – 49 ft) | |||
| DP3 | 700 W | 7 – 10 m | 23 – 33 ft |
| DP3 | 1000 W | 10 – 13 m | 33 – 43 ft |
| DP3 | 1500 W | 12 – 15 m | 39 – 49 ft |
|
Gypsy
|
8 mm – 5/16″ | 10 mm – 3/8″ | |||||
| Chain | 8 mm | 8 mm | 5/16″ | 5/16″ | 10 mm | 10 mm | 3/8″ |
| DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | |
| Rope | 9/16″ – 5/8″ | 5/8″ | |||||
Additional information
| Weight | N/A |
|---|---|

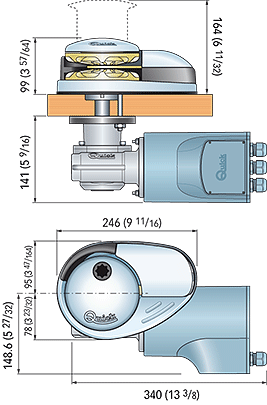

| Dimensions | 17 × 17 × 11 in |
| Drum | |
| Gypsy Size | |
| Series | |
| Wattage | 700W, 1000W, 1500W |
| Voltage | 12V, 24V |
Specifications
|
Standard version
|
DP3 700 / 700 D | DP3 1000 / 1000 D | DP3 1500 / 1500 D | |||
| Motor power | 700 W | 1000 W | 1500 W | |||
| Motor supply voltage | 12 V | 24 V | 12 V | 24 V | 12 V | 24 V |
| Maximum pull | 1499.2 lb | 2204.6 lb | 2204.6 lb | 2425.1 lb | 2425.1 lb | |
| Maximum working load | 551.1 lb | 661.4 lb | 815.7 lb | 992.1 lb | 1036.2 lb | 1190.5 lb |
| Working load | 176.4 lb | 220.5 lb | 264.5 lb | 330.7 lb | 352.7 lb | 396.8 lb |
| Current absorption @ working load (1) | 95 A | 50 A | 140 A | 80 A | 155 A | 85 A |
| Maximum chain speed (2) | 89.9 ft/min | 86.6 ft/min | 121 ft/min | 134 ft/min | 95.8 ft/min | 97.4 ft/min |
| Maximum chain speed @ working load (2) | 38.1 ft/min | 47.2 ft/min | 67 ft/min | 70.2 ft/min | 53.4 ft/min | 67.2 ft/min |
| Weight – DP3 – [without drum] | 37.4 lb | 37.4 lb | 37.4 lb | 44.9 lb | 44.9 lb | |
| Weight – DP3 D – [with drum] | 39.6 lb | 39.6 lb | 39.6 lb | 47.1 lb | 47.1 lb | |
